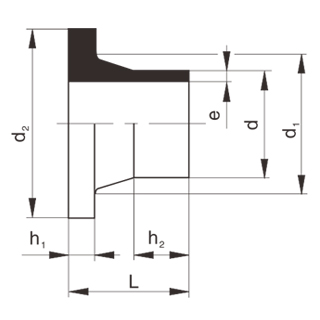

| d(mm) | L(mm) | d1(mm) | D(mm) | d2(mm) | PN10/ISOS-5/SDR11 | |||
| e(mm) | h1(mm) | h2(mm) | weight(Kg) | |||||
| 20 | 52 | 20 | 45 | 27.0 | 2.5 | 7 | 28 | 0.02 |
| 25 | 52 | 25 | 58 | 32.0 | 2.7 | 9 | 25 | 0.03 |
| 32 | 52 | 32 | 68 | 40.0 | 3.0 | 11 | 25 | 0.04 |
| 40 | 57 | 40 | 78 | 49.0 | 3.7 | 11 | 26 | 0.06 |
| 50 | 57 | 50 | 88 | 60.0 | 4.6 | 12 | 25 | 0.10 |
| 63 | 62 | 63 | 102 | 74.0 | 5.8 | 14 | 30 | 0.14 |
| 75 | 69 | 75 | 122 | 88.0 | 6.9 | 16 | 28 | 0.25 |
| 90 | 80 | 90 | 138 | 103.0 | 8.2 | 17 | 29 | 0.35 |
| 110 | 80 | 110 | 158 | 125.0 | 10.0 | 18 | 29 | 0.50 |
| 125 | 90 | 125 | 158 | - | 11.4 | 25 | - | 0.54 |
| 140 | 90 | 140 | 188 | - | 12.8 | 25 | - | 0.80 |
| 160 | 90 | 160 | 212 | - | 14.6 | 25 | - | 0.85 |
| 180 | 80 | 180 | 212 | - | 16.4 | 30 | - | 0.96 |
| 200 | 100 | 200 | 268 | - | 18.2 | 30 | - | 1.70 |
| 225 | 100 | 225 | 268 | - | 20.5 | 30 | - | 1.80 |
| 250 | 100 | 250 | 320 | - | 22.8 | 35 | - | 2.20 |
| 280 | 100 | 280 | 320 | - | 25.5 | 35 | - | 2.40 |
| 315 | 100 | 315 | 370 | - | 28.7 | 35 | - | 3.00 |
| 355 | 120 | 355 | 435 | - | 32.3 | 35 | - | 4.80 |
| 400 | 120 | 400 | 475 | - | 36.4 | 48 | - | 6.40 |
| 450 | 150 | 450 | 535 | - | 41.0 | 55 | - | 9.80 |
| 500 | 150 | 500 | 585 | - | 45.5 | 55 | - | 11.30 |
