浙江佰通防腐設備有限公司
首頁 >> 產品中心 >> 鋼襯產品 >> 鋼襯管道管件

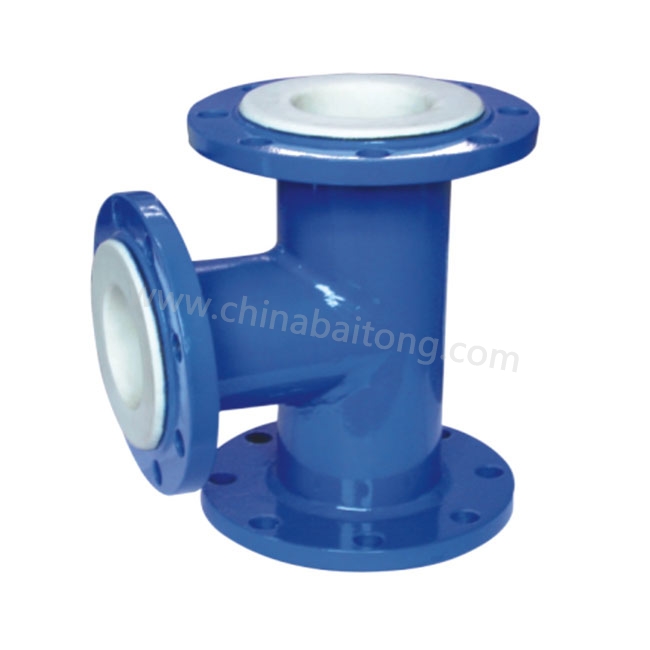

產品名稱:等徑襯里三通管

襯里材質:PTFE、PEA、PEP、PVDF、PO、PP、PE
連接方式:法蘭連接

詳細描述

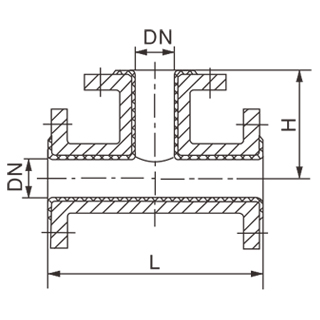

DNxdn 鋼管外徑 D。×d。 PN1.6(MPa)單位:mm
壁厚
鋼管件t(最小) 襯里層T(最小) 三通、四通H(L=2H) 異徑管L
等壓管件
(PTFE)
滾塑管件
(PPH、PO、PE)
注塑管件(PPH、PVDF、PFA
FEP、RPP)
25x25 35.0*35.0 3.5*3.5 3.0*3.0 3.0*3.0 2.0*2.0 200 -
32x32 38.0*38.0 3.0*3.0 3.0*3.0 3.0*3.0 2.0*2.0 200 -
32x25 38.0*35.0 3.0*3.5 150
40x40 48.0*48.0 4.0*4.0 3.0*3.0 3.0*3.0 2.0*2.0 200 -
40x32 48.0*38.0 4.0*3.0 150
40x25 48.0*35.0 4.0*3.5 150
50x50 57.0*57.0 3.5*3.5 3.0*3.0 3.0*3.0 2.5*2.5 200 -
50x40 57.0*48.0 3.5*4.0 2.5*2.0 150
50x32 57.0*38.0 3.5*3.0
50x25 57.0*35.0 3.5*3.5
65x65 76.0*76.0 4.0*4.0 4.0*4.0 4.0*4.0 2.5*2.5 300 -
65x50 76.0*57.0 4.0*3.5 4.0*3.0 4.0*3.0 150
65x40 76.0*48.0 4.0*4.0 2.5*2.0
65x32 76.0*38.0 4.0*3.0
80x80 89.0*89.0 4.0*4.0 4.0*4.0 4.0*4.0 3.0*3.0 300 -
80x65 89.0*76.0 4.0*4.0 3.0*2.5 150
80x50 89.0*57.0 4.0*3.5 4.0*3.0 4.0*3.0
80x40 89.0*48.0 4.0*4.0 3.0*2.0
100x100 108.0*108.0 4.0*4.0 4.0*4.0 4.0*4.0 3.0*3.0 300 -
100x80 108.0*89.0 4.0*4.0 150
100x65 108.0*76.0 4.0*4.0 3.0*2.5
100x50 108.0*57.0 4.0*3.5 4.0*3.0 4.0*3.0
125x125 133.0*133.0 4.0*4.0 5.0*5.0 5.0*5.0 3.5*3.5 300 -
125x100 133.0*108.0 4.0*4.0 5.0*4.0 5.0*4.0 3.5*3.0 1 150
125x80 133.0*89.0 4.0*4.0
125x65 133.0*76.0 4.0*4.0 3.5*2.5
150x150 159.0*159.0 4.5*4.5 5.0*5.0 5.0*5.0 3.5*3.5 400 -
150x125 159.0*133.0 4.5*4.0 150
150x100 159.0*108.0 4.5*4.0 5.0*4.0 5.0*4.0 3.5*3.0
150x80 159.0*89.0 4.5*4.0
200x200 219.0*219.0 6.0*6.0 5.0*5.0 5.0*5.0 4.5*4.5 400 -
200x150 219.0*159.0 6.0*4.5 4.5*3.5 150
200x125 219.0*133.0 6.0*4.0
200x100 219.0*108.0 6.0*4.0 5.0*4.0 5.0*4.0 4.5*3.0
250x250 273.0*273.0 8.0*8.0 5.0*5.0 6.0*6.0 6.0*6.0 500 -
250x200 273.0*219.0 8.0*6.0 6.0*5.0 6.0*4.5 150
250x150 273.0*159.0 8.0*4.5 6.0*3.5
250x125 273.0*133.0 8.0*4.0
300x300 325.0*325.0 9.0*9.0 7.0*7.0 6.0*6.0 6.0*6.0 600 -
300x250 325.0*273.0 9.0*8.0 7.0*5.0 150
300x200 325.0*219.0 9.0*6.0 6.0*5.0 6.0*4.5
300x150 325.0*159.0 9.0*4.5 6.0*3.5
350x350 377.0*377.0 9.0*9.0 7.0*7.0 6.0*6.0 6.0*6.0 700 -
350x300 377.0*325.0 9.0*9.0 490
350x250 377.0*273.0 9.0*8.0 7.0*5.0
350x200 377.0*219.0 9.0*6.0 6.0*5.0 6.0*4.5
400x400 426.0*426.0 9.0*9.0 7.0*7.0 6.0*6.0 6.0*6.0 800  -
400x350 426.0*377.0 9.0*9.0 536
400x300 426.0*325.0 9.0*9.0
400x250 426.0*273.0 9.0*8.0 7.0*5.0
400x200 426.0*219.0 9.0*6.0 6.0*5.0 6.0*4.5
