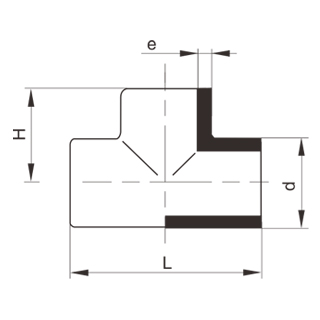

| d(mm) | L(mm) | H(mm) | K | d1 | PN10/ISOS-5/SDR11 | |
| e(mm) | weight(Kg) | |||||
| 20 | 76 | 38 | 36.0 | 22.00 | 2.5 | 0.01 |
| 25 | 84 | 42 | 44.0 | 28.00 | 2.7 | 0.02 |
| 32 | 92 | 46 | 52.0 | 35.00 | 3.0 | 0.04 |
| 40 | 102 | 51 | 60.0 | 44.00 | 3.7 | 0.66 |
| 50 | 118 | 59 | 74.0 | 56.00 | 4.6 | 0.12 |
| 63 | 132 | 66 | 90.0 | 68.00 | 5.8 | 0.20 |
| 75 | 148 | 74 | 110.0 | 81.00 | 6.9 | 0.30 |
| 90 | 180 | 90 | 130.0 | 98.00 | 8.2 | 0.50 |
| 110 | 220 | 110 | 150.0 | 118.00 | 10.0 | 1.00 |
| 125 | 245 | 123 | 165.0 | 133.00 | 11.4 | 1.20 |
| 140 | 293 | 146 | 190.0 | 146.00 | 12.8 | 1.80 |
| 160 | 315 | 158 | 210.0 | 166.00 | 14.6 | 2.40 |
| 180 | 355 | 178 | 240.0 | 187.00 | 16.4 | 4.40 |
| 200 | 385 | 192 | 245.0 | 207.00 | 18.2 | 6.20 |
| 225 | 435 | 217 | 295.0 | 232.00 | 20.5 | 6.70 |
| 250 | 440 | 220 | 300.0 | 258.00 | 22.8 | 9.50 |
| 280 | 495 | 247 | 350.0 | 288.00 | 25.5 | 11.60 |
| 315 | 530 | 265 | 385.0 | 323.00 | 28.7 | 14.90 |
| 355 | 675 | 337 | 470.0 | 379.00 | 32.3 | 31.50 |
| 400 | 674 | 337 | 470.0 | 420.00 | 36.4 | 40.50 |
