產品類別
Category
詳細描述

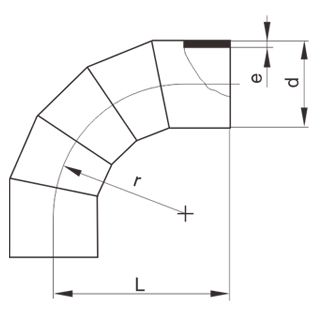

| d(mm) | L(mm) | r(mm) | PN2.5/ISOS-20/SDR41 | PN3.2/ISOS-16/SDR33 | ||
| e(mm) | weight(Kg) | e(mm) | weight(Kg) | |||
| 450 | 875 | 675 | 11.0 | 21.6 | 14.0 | 27.7 |
| 500 | 975 | 750 | 12.2 | 29.5 | 15.5 | 38.0 |
| 560 | 1075 | 840 | 13.7 | 40.7 | 17.4 | 52.5 |
| 630 | 1200 | 945 | 15.4 | 57.5 | 19.6 | 74.5 |
| 710 | 1360 | 1065 | 17.4 | 91.0 | 22.1 | 117.0 |
| 800 | 1530 | 1200 | 19.6 | 131.0 | 24.9 | 170.0 |
| 900 | 1720 | 1350 | 22.0 | 166.0 | 28.0 | 215.0 |
| 1000 | 1920 | 1500 | 24.4 | 230.0 | 31.0 | 280.7 |
| 1200 | 2700 | 1800 | 29.3 | 386.8 | 37.3 | 489.1 |
| d(mm) | L(mm) | r(mm) | PN6/ISOS-8.3/SDR17.6 | PN10/ISOS-5/SDR11 | |||
| e(mm) | weight(Kg) | e(mm) | weight(Kg) | ||||
| 450 | 875 | 675 | 25.5 | 47.7 | 41.0 | 73.2 | |
| 500 | 975 | 750 | 28.3 | 65.7 | 45.5 | 101.5 | |
| 560 | 1075 | 840 | 31.7 | 90.7 | - | - | |
| 630 | 1200 | 945 | 35.7 | 128.0 | - | - | |
| 710 | 1360 | 1065 | 40.2 | 202.0 | - | - | |
