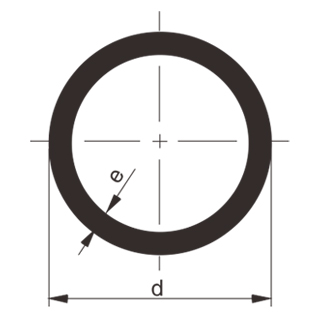

d(mm) |
PN6 |
PN10 |
||||
|
e(mm) |
Weight(Kg/m) |
e(mm) |
Weight(Kg/m) |
|||
|
16 |
2.3 |
0.1 |
3.0 |
0.12 |
||
|
20 |
2.3 |
0.12 |
3.0 |
0.15 |
||
|
25 |
2.3 |
0.16 |
3.0 |
0.20 |
||
|
32 |
2.3 |
0.2 |
3.0 |
0.28 |
||
|
40 |
2.3 |
0.27 |
3.7 |
0.43 |
||
|
50 |
2.9 |
0.44 |
4.6 |
0.67 |
||
|
63 |
3.6 |
0.69 |
5.8 |
1.1 |
||
|
75 |
4.3 |
0.98 |
6.8 |
1.5 |
||
|
90 |
5.2 |
1.40 |
8.2 |
2.1 |
||
|
110 |
6.3 |
2.10 |
10.0 |
3.1 |
||
|
125 |
7.1 |
2.70 |
11.4 |
4.1 |
||
|
140 |
8.0 |
3.30 |
12.7 |
5.1 |
||
|
160 |
9.1 |
4.40 |
14.6 |
6.7 |
||
|
180 |
10.3 |
5.50 |
16.4 |
8.4 |
||
|
200 |
11.4 |
6.80 |
18.2 |
10.4 |
||
|
225 |
12.8 |
8.60 |
20.5 |
13.1 |
||
|
250 |
14.2 |
10.70 |
22.7 |
16.2 |
||
|
280 |
15.9 |
13.20 |
25.4 |
20.3 |
||
|
315 |
17.9 |
16.70 |
28.6 |
25.7 |
||
|
355 |
20.2 |
21.20 |
32.2 |
32.6 |
||
|
400 |
22.8 |
26.90 |
36.3 |
41.4 |
||
|
450 |
25.6 |
34.00 |
40.9 |
52.4 |
||
|
500 |
28.4 |
41.90 |
45.4 |
64.6 |
||
|
560 |
31.9 |
53.00 |
50.8 |
81.1 |
||
|
630 |
35.8 |
66.70 |
57.2 |
98.8 |
||
