產品類別
Category
詳細描述

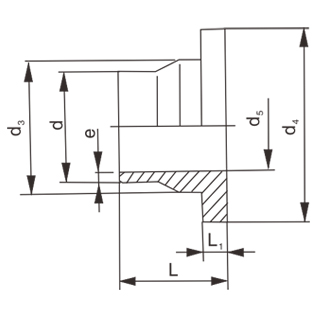

| d(mm) | d3(mm) | d4(mm) | d5(mm) | PN1.6(MPa) | ||||
| L(mm) | L1(mm) | e(mm) | weight(Kg) | |||||
| 20 | 26 | 45 | 17 | 50 | 6 | 1.9 | 0.027 | |
| 25 | 32 | 58 | 22 | 50 | 7 | 1.9 | 0.046 | |
| 32 | 40 | 68 | 28 | 54 | 7 | 2.4 | 0.065 | |
| 40 | 49 | 78 | 36 | 55 | 8 | 2.4 | 0.095 | |
| 50 | 60 | 88 | 45 | 62 | 8 | 3.0 | 0.125 | |
| 63 | 75 | 102 | 58 | 63 | 9 | 3.0 | 0.171 | |
| 75 | 89 | 122 | 65 | 59 | 10 | 3.6 | 0.280 | |
| 90 | 105 | 138 | 78 | 80 | 11 | 4.3 | 0.450 | |
| 110 | 125 | 158 | 96 | 80 | 12 | 5.3 | 0.620 | |
| 140 | 155 | 188 | 123 | 89 | 15 | 6.7 | 1.200 | |
| 160 | 175 | 212 | 140 | 92 | 16 | 7.7 | 1.100 | |
| 200 | 232 | 268 | 177 | 100 | 20 | 9.6 | 1.850 | |
| 225 | 235 | 268 | 199 | 100 | 20 | 10.8 | 2.045 | |
相關產品
